Testing & Commissioning

Plant Controller and Harmonic Testing for COD Readiness

Harmonic and plant controller test services that help validate AVR, PFR, PMU, reactive power, and harmonic performance against ISO and IEEE requirements.

AVR / PFR testing Harmonic measurement COD support
Plan Your Test Program → See Scope of Work

Testing informed by plant dynamics, modeling, controls, and field behavior

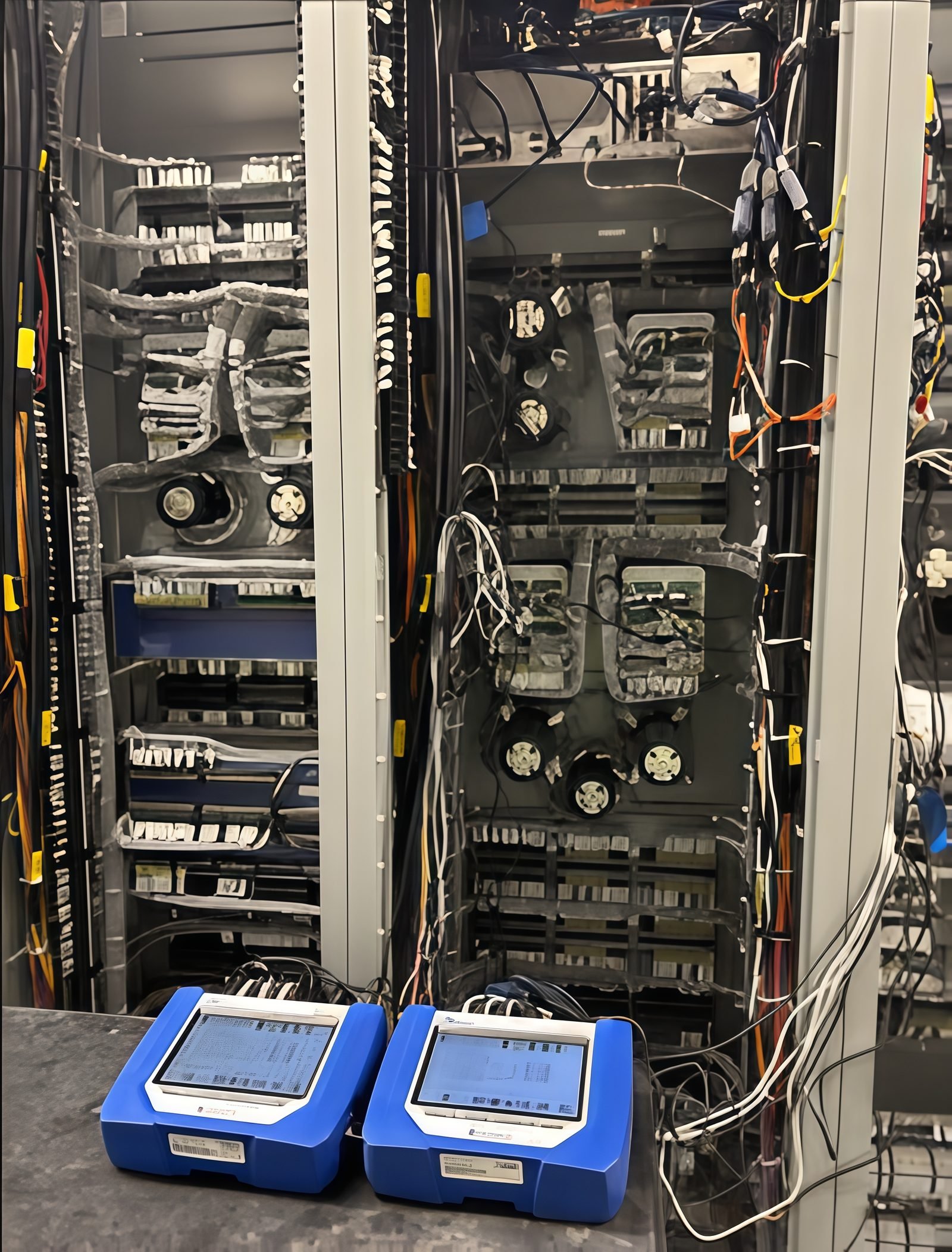

Field testing equipment for plant commissioning
Sound Familiar?

Plant control tests expose issues when teams are not aligned

Inverter trips during testing Critical Plant control coordination issues can trigger inverter trips during commissioning tests.
Pressing COD timeline Deadline Testing, debugging, documentation, and retesting must be completed without missing COD milestones.
Testing and modeling teams misaligned Unknown Field behavior, model assumptions, and test procedures must match to resolve issues quickly.
Harmonic standards not met Risk Harmonic resonance or measurement uncertainty can delay acceptance against IEEE and utility requirements.
Why INS

Dynamic modeling expertise makes field testing more decisive

Dynamic Modeling Depth

Deep dynamic modeling and protection/control experience help smooth test procedures and reduce avoidable trips.

Controls-aware testing

Controller Coordination

Understanding grid strength, PPC, OLTC, and inverter dynamics helps narrow down plant behavior issues.

Modeling + Testing Alignment

INS coordinates interconnection modeling and testing teams to help projects reach COD on schedule.

Harmonic Issue Isolation

EMT harmonic models help narrow down resonance issues and support filter design or utility justification.

Scope of Work

Testing and commissioning capabilities

Commissioning Checklists

ERCOT checklists I, II, III and similar regional commissioning checklist support.

AVR Testing

Reactive power and voltage control testing validated against ISO requirements.

PFR Testing

Active power and frequency control testing validated against ISO requirements.

PMU Data Validation

Support plant operators in validating PMU data and ISO submissions.

Plant Reactive Testing

Validate plant reactive power capability against requirements such as CURL.

Harmonic Measurement

Field measurement and validation against IEEE 2800 and IEEE 519.

Our Process

From testing scope to standards-based results

1

Testing Scope

Define AVR, PFR, PMU, reactive, harmonic, and checklist testing needs.

COD requirements

2

Data Collection

Collect models, plant design, voltage schedule, active/reactive capability, and 3LDs.

Plant configuration

3

Test Coordination

Coordinate with plant operators, ISOs, and utilities for field testing windows.

Operator + ISO + utility

4

Execution & Debugging

Run tests, compare behavior to models, and narrow down controller or harmonic issues.

Field + model alignment

5

Delivery

Deliver results against ISO, IEEE 2800, and IEEE 519 requirements.

Standards-based report

Sample Project

Testing and commissioning support for COD

400
MW BESS
1
GWh
COD
On Schedule

SOHO Energy Storage

INS provided testing, VRT debugging, commissioning, and ERCOT checklists I, II, and III for SOHO Energy Storage, a 400 MW / 1 GWh project in CNP Texas. The support helped the plant meet COD on schedule.

Get Plant Tests Done With the Dynamics in Mind.

Tested by experienced INS engineers who understand commissioning, controls, harmonics, and real plant behavior.
